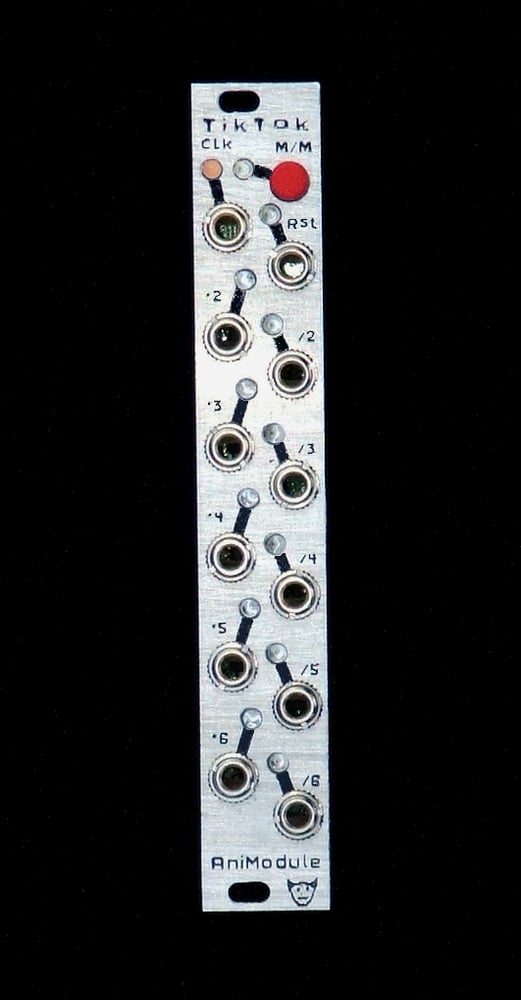

It has Divisions and Multiplications of:
There is a Clk Input and a Reset Input.
Both are buffered with an opamp based comparator circuit.
They are looking for approximately +1.1V on a rising edge.
This means that you are not constrained to gate (pulse) signals to trigger them.
The Reset input resets your divisions clock counter to 1
There is a switch to select Mathematical or Musical divisions.
The Multiplication Outputs 25MS Trigger pulses.
The Division Outputs are on as long as your Clock source.
Avg Current draw:
Peak Current Draw:
Width = 4HP
Depth = 38mm
